1933 Chevy Standard Radiator

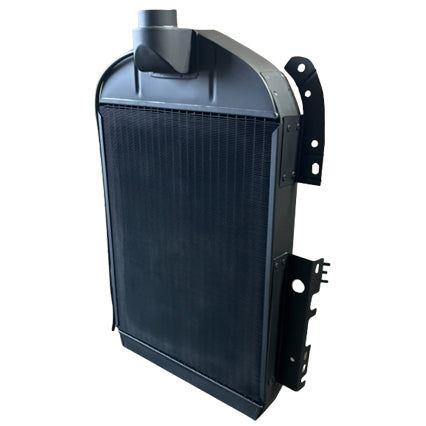

1933 Chevy Standard Street Rod Radiator

This is a tube and fin core conversion.  It is intended to fit within the shell.

A horizontal support bar for the shell, lights and fenders bolts on the engine side flush to the core.  Growing the core thicker requires spacer to maintain this support.  We can provide a plate to your specification should you need help.

The original Harrison v cell core was 2" deep and 142^o degree ribbon cellular core  comprised of narrow passages that can clog with rust, sediment or get coated over time with hard scale or oil from the engine.  This radiator core thickness can be grown by reversing the horizontal cross brace and adjusting sidewall bracket placement neck etc.  This still requires consideration of the fan distance so contact us for the deeper core.

Made in the USA

Here's a good tip from a customer:

The replacement fan for original Chevy 6 cylinder passenger cars is marketed for everything from 1931-1954. The original 15-3/4" fan is one of the few parts on the Chevy Standard that is shared with other Chevy models and years.

1937-38 passenger car water pumps puts the  original fan too close to the radiator. Part # 838933 is readily available and also measures 15-3/4".  Its can be adapted to earlier pump pulleys by enlarging the holes slightly. The fan sits 1/2 inch lower on the pulley than the original fan providing additional radiator clearance.

Images reflect past builds and illustrate various elements of design.  The radiator you order will be constructed based on the information you provide for your bespoke build.
