Smiths 1948-1972 Heater Core; Land Rover, Morgan, Triumph, Austin, Jaguar etc
HC Smiths-JR -R150 3.125"
Our Smith's replacement heater core is designed to replace the round donut style Smiths heater cores which used a seamed flat tube formed in a circle and set between layers of serpentine fins. The lap seams are susceptible to joint failure and difficult to repair and serpentine fins may separate from a tube in time due to vibration and corrosion.

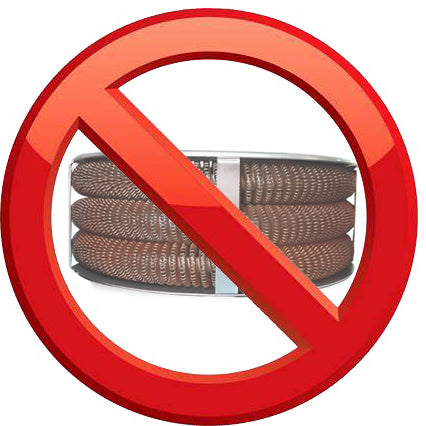

The only available replacement is a large round tube with a spiral wound copper fin that is intended for an alternative use. The large tubes do not maximize coolant wall contact and restrict airflow. Additionally this thinner core design requires a fan placement modification to match the OE dimensions.
We re-designed the Smiths heater core to do a better job than both alternatives by using smaller diameter and .010 wall round copper tubes with flat copper fins.

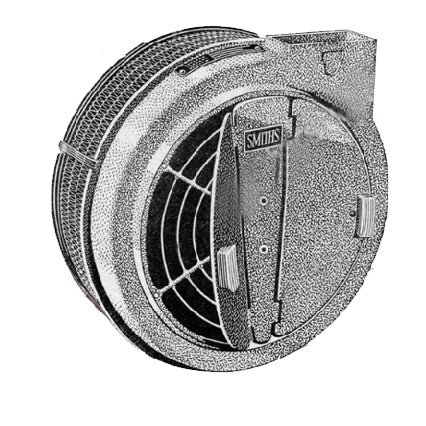

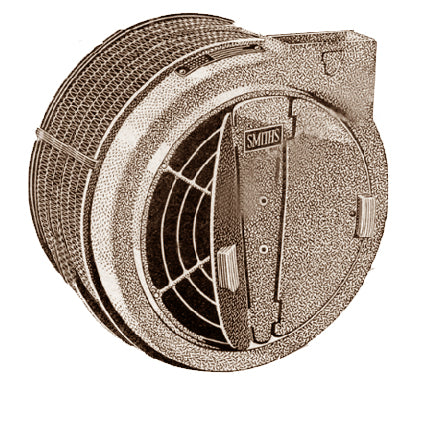

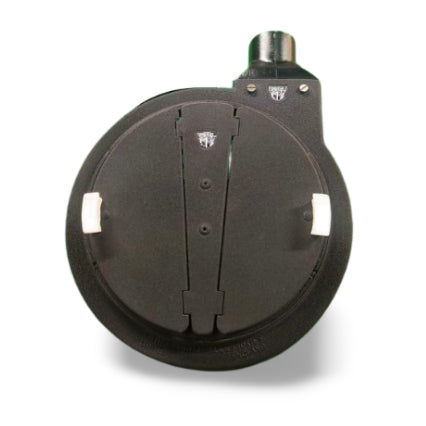

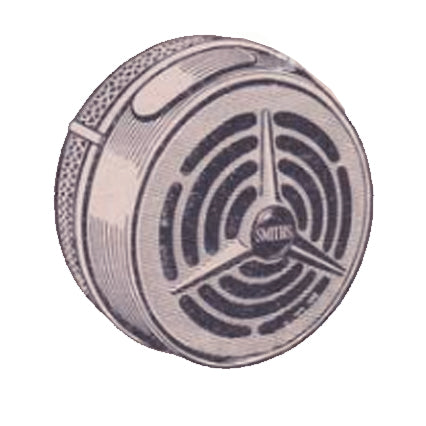

Images shown are of complete heater cores and housings. We make just the heater core.
- 1948-1957 Series I
- 1958-1961 Series II
- 1962 IIA Forward Control
- 1966 Series IIB Forward Control
- 1961-1972 Series IIA
- Triumph TR2 TR3
- Jaguar
- Morris Minor
- Mini
- MGA
- Cooper
- Morgan
Features
- Junior Dimensions 7-3/4" OD - 4-3/8" ID - 3-3/8" tall (OE 7 fins 6 tubes)
- Senior Dimensions 7-3/4" OD - 4-3/8" ID - 4-1/4" tall (OE 9 fins 8 tubes)
- Constructed with seamless round copper tubes and 15 flat copper fins per inch
- Made to order.
- Made in the USA
We make to order. Please allow adequate time for us to build.
Build time estimates [Feb 2025]
Brass/Black Model Ts
Our longstanding foundry (supplier) closed and all production was shifted to a neighboring foundry. Apparently many of the closed foundry's workers were ineligible for rehire by the new foundry due to more aggressive immigration enforcement and the union has no employees to provide. As of 2-20-25, we should receive castings in March 2025 and can resume production then.
In the interim, we have been working with our one-off foundry to have pattern boxes made and these are trickling in in smaller batches and we will produce what we can.
Model As 5-6 weeks
Heater cores ~6 weeks
Model A and 32 Ford Street rods 6 weeks
Common street rods ~12-15 weeks
Tricky customs & complicated restorations ~16 weeks months
We appreciate your patience as we continue to recruit and train new fabricators and manage the labor shortfall our country has been experiencing.
